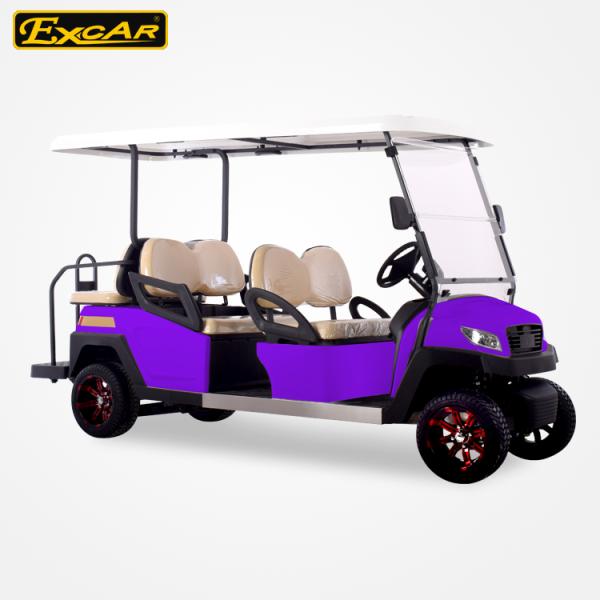

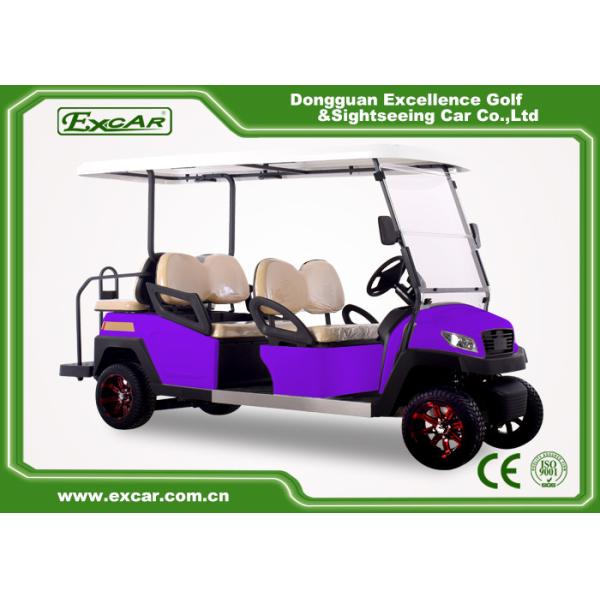

6 Seater Fuel Type Electric Passenger Car Purple With Italian Axle

Brand Name : EXCAR

Model Number : M1S4+2

Certification : CE

Place of Origin : China

MOQ : 1 unit

Price : Negotiate

Payment Terms : D/A, D/P, Western Union, MoneyGram, L/C, T/T

Supply Ability : 200 units per month

Delivery Time : 7 days after received your deposit

Packaging Details : LCL shipment Packing:roof move-off packing, steel frame , cartoon paper cover.

Framework : Steel

Body : All engineering plastic

Batteries : Lead-acid wet batteries USA Trojan batteries

Controller : USA Curtis controller 48V 275A

Steer system : Self-adjusting rack & pinion

Front suspension : Independent spring suspension

Rear suspension : Coil spring hydraulic shock absorber

Motor : ADC separately excited 48V 3.7w

Max.speed : 25km/h or 45km/h

Climbing capacity : 20% or 25%

Brake system : Rear wheel mechanical drum

Contact Now

Italian Axle 6 seats Electric Fuel Type 350A Controller 48V USA Battery Electrical Sightseein Car with CE Certificated

Basic specification

Item Description
Brand Excar
Model M1S4+2
Overall dimensions (L x W x H) 3500x1200x1800mm
Ground clearance 150mm
Wheelbase 2490mm
Front wheel tread (mm) 860mm
Rear wheel tread (mm) 970mm

Key Components

System DC system AC system
Controller Curtis controller 1266A-5301, 350A, imported from USA directly Curtis controller 1234E-5321, 350A, imported from USA directly
Motor

ADC brand Separately excited

DC motor 48V 3.7kw

ADC brand Separately excited

AC motor 48V 3kw
Battery Trojan battery, T875,8V*6pcs, imported from USA directly Trojan battery, T875,8V*6pcs, imported from USA directly
Transaxle

Italian GRAZIANO axle

with gear ration 1:12

Italian GRAZIANO axle

with gear ration 1:16
Charger

High Frequency onboard charger

48V/17A regulator

High Frequency onboard charger

48V/17A regulator

Performance

system DC system AC system
Passenger Capacity 6 6
Climbing capacity(full load) 20% 25%
Max. forward speed 23km/h 45km/h
Endurance mileage 60-80km 80-100km
Charging time 8-10 hours 8-10 hours
Max. loading weight 300kgs 300kgs
Min. turning radius 3.9m 3.9m
Max. movement after brake at speed of 20km/h ≤4m ≤4m

Electric System

Item Description
Lights

48V, LED headlight (includes turning light and position light),

LED taillights (includes brake lights and turning light),
Horn Electric horn, 48V
Reverse buzzer Electric, 48V
Combination switch Control the lights and horn
Digital Meter (optional)

Including kilometer indicator, speed indicator, overload indicator, parking brake indicator, clock

Body and Frame

Item Description
Frame & Chassis Steel alloy framework
Body PP engineering plastic front and rear body cover, injected
Roof Glass fiber reinforced plastic
Windshield Organic glass (PMMA), one-piece or two pieces
Roof supports Imbedding black coating steel tube in the plastic support
Cushion Reborn sponge with artificial leather and plastic bottom cover
Backrest Reborn sponge with artificial leather and plastic cover
Armrest Plastic
Floor mat Anti-skidding rubber
Rear basket Plastic
Golf bag holder Plastic support with nylon strap
Dashboard Black plastic material, battery power indicator, ignition key on it
Beverage holders 4 pcs cups holders, 2 pcs for each side
Side trim Plastic, black
Score card holder On the steering wheel

Color Options

Body colour White Grey Sky blue
Dark blue Red Wine red
Green Dark green Yellow
Purple Champagne Black
These are the popular colours, but your customized color is available,just provide the right Panton No. color
Seat & Roof colour Black Beige White

Packed by plastic foam & plastic film

Container Capacity Remove roof,windshield with roof & windshield
Qty/20'GP 4units 2units
Qty/40'HQ 12units 6units

6 Seater Fuel Type Electric Passenger Car Purple With Italian Axle


Product Tags:

electric shuttle car



electric tourist car


Wholesale 6 Seater Fuel Type Electric Passenger Car Purple With Italian Axle from china suppliers

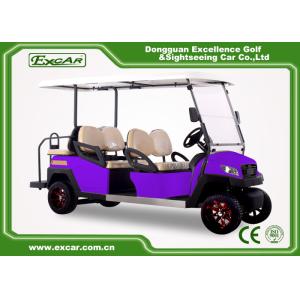

6 Seater Fuel Type Electric Passenger Car Purple With Italian Axle Images
